ICON SUPER GRIP
2026 product lineup 12-strand HMPE/PES

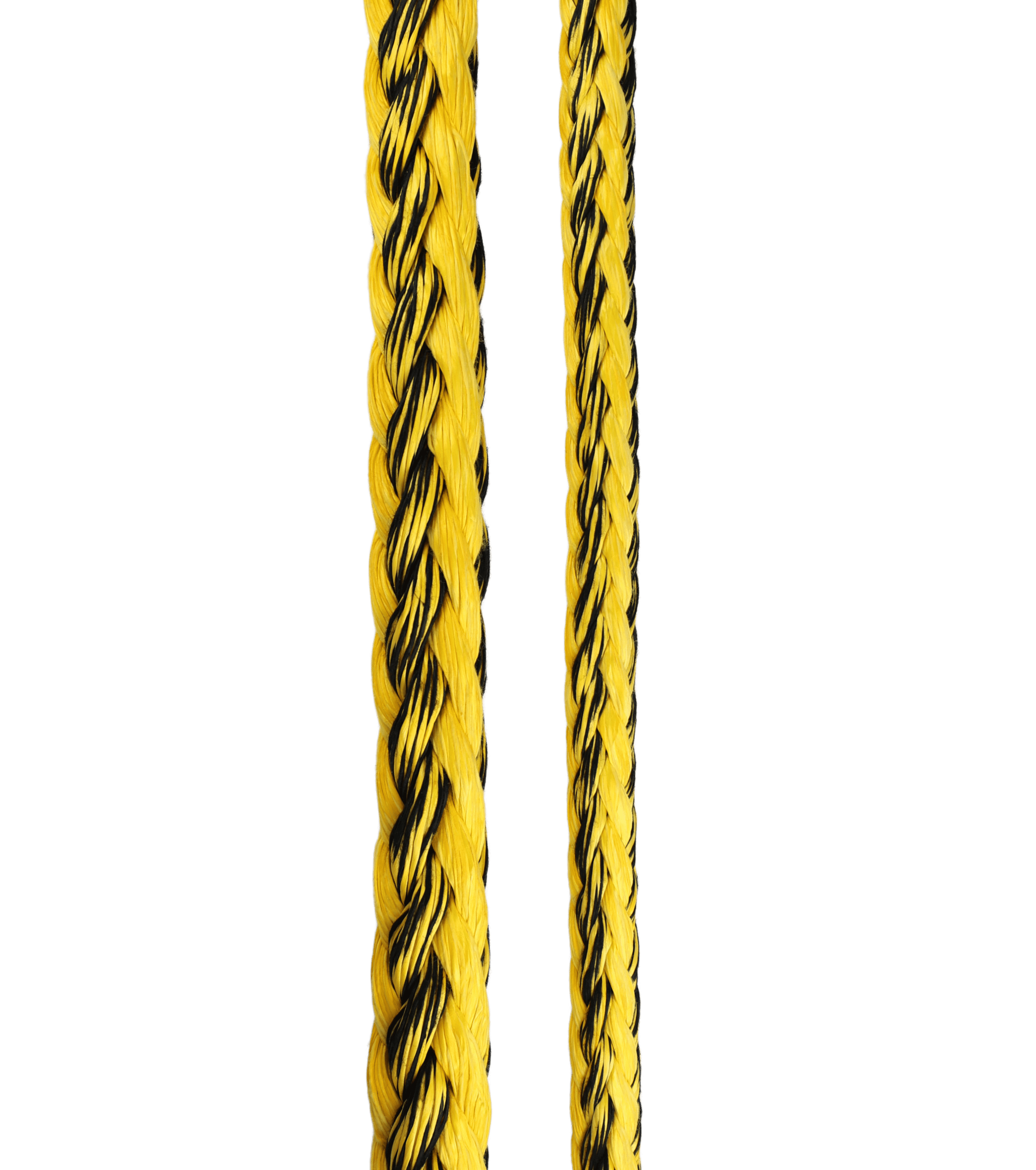

ICON Super Grip is high‑performance 12‑strand rope manufactured from HMPE/PES fibers, each strand individually treated using a rotating 360° kiss‑roller coating process to ensure uniform protection and performance stability.
Premium 12‑strand braided HMPE / PES (UHMWPE /PES) rope featuring ultra‑high breaking strength and excellent friction.
customize color
Main color
Accent color
Key benefits
- Extremely good on winches, bits and capstans
- Increased safety
- High strength-to-weight
- Available in high diameters
- Extra long durability
- Excellent abrasion resistance
- Reduced external damage and particle ingress
- Easy to splice and repair
- Easy to inspect
Product features
-
Construction 12-strand plaited core
-
Fiber HMPE/PES
-
Specific gravity 0,99 - 1,1 (varies with the diameter)
-
UV resistance Excellent
-
Abbrasion resistance Excellent
-
Acid resistance Excellent
-
Alkali resistance Excellent
-
Most chemicals resistance Excellent
-
Water resistance Excellent (0% absorption)
-
Heat resistance Low (145°C - 150°C melting)
-
Elongation Low (2-3% at break)
DOWNLOAD
materials
| Diameter | Mass | MBL spliced | MBL unspliced | ||||||
|---|---|---|---|---|---|---|---|---|---|
| (mm) | (inch) | (kg/m) | (lbs/100 ft) | (t) | (kN) | (lbs) | (t) | (kN) | (lbs) |
| 16 | 5/8" | 0,148 | 9,945 | 14,3 | 143 | 31 966 | 16,2 | 159 | 35 714 |
| 18 | 11/16" | 0,185 | 12,431 | 16,8 | 190 | 42 549 | 18,7 | 211 | 47 399 |
| 20 | 13/16" | 0,225 | 15,119 | 19,3 | 239 | 53 572 | 21,5 | 266 | 59 745 |
| 22 | 7/8" | 0,269 | 18,076 | 21,7 | 291 | 65 256 | 24,2 | 323 | 72 531 |
| 24 | 15/16" | 0,316 | 21,234 | 35,1 | 346 | 77 382 | 27,1 | 384 | 86 200 |
| 26 | 1 | 0,367 | 24,661 | 41,0 | 403 | 90 389 | 45,6 | 448 | 100 530 |
| 28 | 1_1/8" | 0,422 | 28,357 | 47,1 | 463 | 103 837 | 52,4 | 514 | 115 522 |
| 30 | 1_3/16" | 0,480 | 32,255 | 53,4 | 525 | 117 726 | 59,4 | 583 | 130 954 |
| 32 | 1_1/4" | 0,541 | 36,354 | 59,9 | 589 | 132 056 | 52,0 | 654 | 146 827 |
| 34 | 1_5/16" | 0,606 | 40,721 | 66,8 | 656 | 147 268 | 74,3 | 729 | 163 803 |
| 36 | 1_7/16" | 0,674 | 45,291 | 73,9 | 726 | 162 921 | 82,2 | 807 | 181 219 |
| 38 | 1_1/2" | 0,746 | 50,129 | 81,3 | 798 | 179 235 | 90,4 | 887 | 199 297 |
| 40 | 1_9/16" | 0,808 | 54,295 | 89,0 | 873 | 196 211 | 98,9 | 970 | 218 036 |
| 42 | 1_5/8" | 0,882 | 59,268 | 99,0 | 972 | 218 257 | 110,1 | 1 080 | 242 728 |
| 44 | 1_3/4" | 0,958 | 64,375 | 109,2 | 1 072 | 240 744 | 121,4 | 1 191 | 267 640 |
| 46 | 1_13/16" | 1,037 | 69,683 | 119,6 | 1 174 | 263 672 | 132,9 | 1 304 | 292 993 |
| 48 | 1_7/8" | 1,119 | 75,193 | 130,1 | 1 277 | 286 821 | 144,6 | 1 419 | 318 788 |
| 50 | 1_15/16" | 1,204 | 80,905 | 140,6 | 1 380 | 309 969 | 156,3 | 1 533 | 344 582 |
| 52 | 2_1/16" | 1,291 | 86,751 | 151,3 | 1 485 | 333 559 | 168,2 | 1 650 | 370 817 |
| 54 | 2_1/8" | 1,381 | 92,799 | 162,1 | 1 591 | 357 368 | 180,2 | 1 768 | 397 272 |
| 56 | 2_3/16" | 1,473 | 98,981 | 173,2 | 1 699 | 381 840 | 192,5 | 1 888 | 424 389 |
| 58 | 2_5/16" | 1,568 | 105,365 | 184,2 | 1 807 | 406 091 | 204,7 | 2 008 | 451 285 |
| 60 | 2_3/8" | 1,666 | 111,950 | 195,3 | 1 917 | 430 562 | 217,1 | 2 130 | 478 623 |
| 62 | 2_7/16" | 1,767 | 118,737 | 206,7 | 2 028 | 455 694 | 229,7 | 2 253 | 506 401 |
| 64 | 2_1/2" | 1,870 | 125,658 | 218,1 | 2 140 | 480 827 | 242,4 | 2 378 | 534 400 |
| 66 | 2_5/8" | 1,975 | 132,714 | 229,6 | 2 253 | 506 180 | 255,2 | 2 503 | 562 619 |
| 68 | 2_11/16" | 2,083 | 139,971 | 241,3 | 2 368 | 531 974 | 268,2 | 2 631 | 591 280 |
| 70 | 2_3/4" | 2,194 | 147,430 | 253,1 | 2 483 | 557 989 | 281,3 | 2 759 | 620 160 |
| 72 | 2_13/16" | 2,307 | 155,023 | 265,0 | 2 600 | 584 224 | 294,5 | 2 889 | 649 261 |
| 74 | 2_15/16" | 2,423 | 162,818 | 277,1 | 2 718 | 610 900 | 307,9 | 3 020 | 678 802 |
| 76 | 3 | 2,541 | 170,747 | 289,2 | 2 837 | 637 576 | 321,4 | 3 152 | 708 565 |
| 78 | 3_1/16" | 2,661 | 178,811 | 301,5 | 2 957 | 664 692 | 335,0 | 3 286 | 738 547 |
| 80 | 3_1/8" | 2,784 | 187,076 | 313,9 | 3 079 | 692 030 | 348,8 | 3 421 | 768 971 |
| 82 | 3_1/4" | 2,910 | 195,543 | 326,4 | 3 201 | 719 587 | 362,7 | 3 557 | 799 615 |
| 84 | 3_5/16" | 3,038 | 204,144 | 338,9 | 3 325 | 747 145 | 376,6 | 3 694 | 830 259 |
| 86 | 3_3/8" | 3,168 | 212,880 | 351,7 | 3 450 | 775 364 | 390,8 | 3 833 | 861 565 |
| 88 | 3_7/16" | 3,301 | 221,817 | 364,6 | 3 577 | 803 804 | 405,2 | 3 974 | 893 312 |
| 90 | 3_9/16" | 3,436 | 230,889 | 377,7 | 3 704 | 832 684 | 419,7 | 4 116 | 925 279 |
| 92 | 3_5/8" | 3,573 | 240,095 | 390,6 | 3 832 | 861 124 | 434,1 | 4 258 | 957 025 |
| 94 | 3_11/16" | 3,713 | 249,502 | 403,9 | 3 962 | 890 446 | 448,8 | 4 402 | 989 433 |
| 96 | 3_3/4" | 3,855 | 259,044 | 417,3 | 4 093 | 919 987 | 463,7 | 4 548 | 1 022 282 |
| 98 | 3_7/8" | 3,999 | 268,720 | 430,7 | 4 225 | 949 529 | 478,6 | 4 694 | 1 055 131 |
| 100 | 3_15/16" | 4,146 | 278,598 | 444,3 | 4 358 | 979 512 | 493,7 | 4 842 | 1 088 420 |
| 102 | 4 | 4,295 | 288,611 | 458,1 | 4 493 | 1 009 936 | 509,0 | 4 992 | 1 122 151 |
| 104 | 4_1/8" | 4,447 | 298,825 | 471,8 | 4 628 | 1 040 139 | 524,3 | 5 142 | 1 155 882 |
| 106 | 4_3/16" | 4,601 | 309,173 | 485,8 | 4 765 | 1 071 004 | 539,8 | 5 294 | 1 190 053 |
| 108 | 4_1/4" | 4,757 | 319,656 | 499,9 | 4 903 | 1 102 089 | 555,5 | 5 448 | 1 224 666 |
| 110 | 4_5/16" | 4,915 | 330,273 | 514,0 | 5 042 | 1 133 174 | 571,2 | 5 602 | 1 259 279 |
| 112 | 4_7/16" | 5,076 | 341,091 | 528,4 | 5 183 | 1 164 921 | 587,2 | 5 759 | 1 294 552 |
| 114 | 4_1/2" | 5,238 | 351,977 | 542,8 | 5 324 | 1 196 667 | 603,2 | 5 916 | 1 329 826 |
| 116 | 4_9/16" | 5,404 | 363,132 | 557,3 | 5 467 | 1 228 634 | 619,3 | 6 074 | 1 365 321 |
| 118 | 4_5/8" | 5,571 | 374,354 | 571,9 | 5 610 | 1 260 822 | 635,5 | 6 233 | 1 401 036 |
| 120 | 4_3/4" | 5,741 | 385,777 | 586,9 | 5 756 | 1 293 891 | 652,2 | 6 396 | 1 437 853 |
| 122 | 4_13/16" | 5,912 | 397,268 | 601,8 | 5 902 | 1 326 740 | 668,7 | 6 558 | 1 474 229 |
| 124 | 4_7/8" | 6,087 | 409,028 | 616,7 | 6 049 | 1 359 589 | 685,3 | 6 721 | 1 510 826 |
| 126 | 4_15/16" | 6,263 | 420,854 | 631,9 | 6 198 | 1 393 099 | 702,2 | 6 887 | 1 548 084 |
| 128 | 5_1/16" | 6,441 | 432,815 | 647,1 | 6 347 | 1 426 609 | 719,1 | 7 052 | 1 585 342 |
| 130 | 5_1/8" | 6,622 | 444,978 | 662,5 | 6 498 | 1 460 560 | 736,2 | 7 220 | 1 623 041 |
