TERRAX

2026 product lineup 12-strand polyester rope

TERRAX - a revolutionary 12-strand polyester rope that rewrites the rules of strength. Outperforming conventional polyester ropes by more than 2x, it achieves an extraordinary breaking strength that sits 150% above the ISO standard. When ordinary simply won't cut it, TERRAX delivers the extraordinary.


Download Datasheet

customize color

Main color

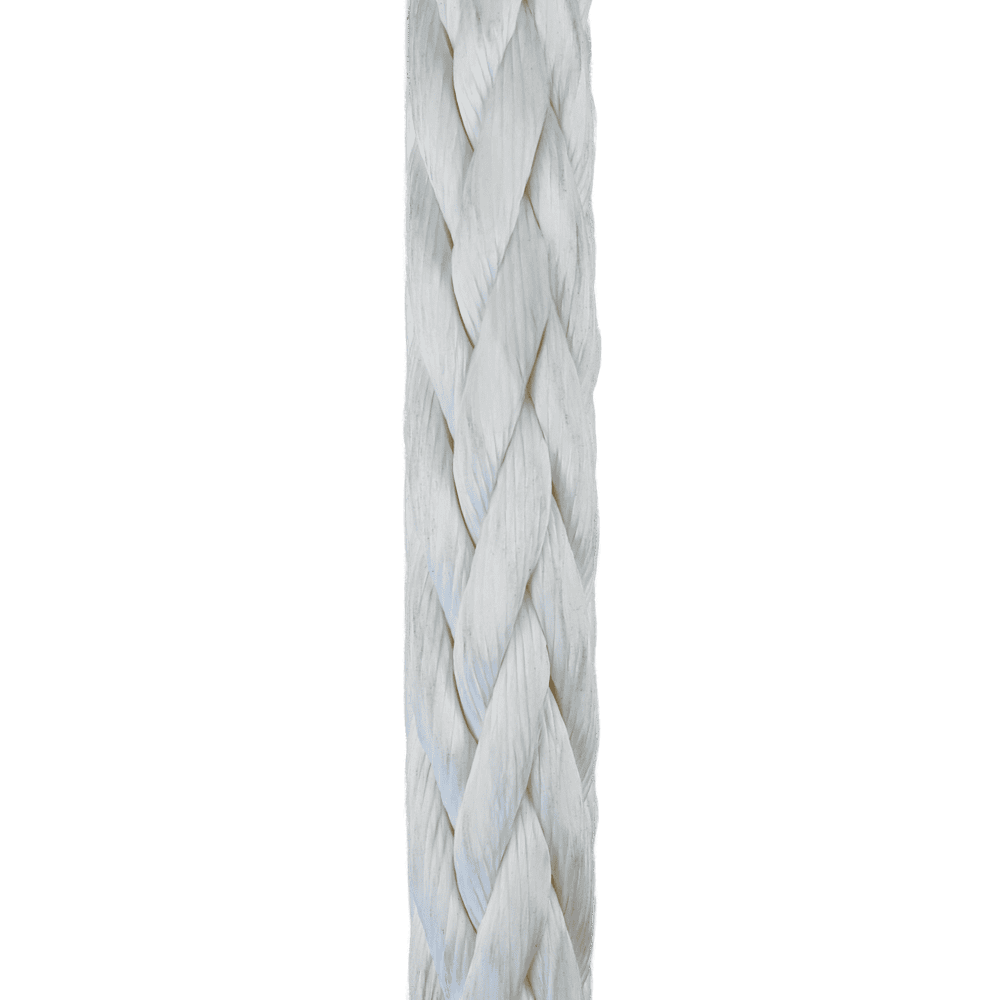

High-strength 12-strand polyester rope TERRAX outperforming conventional ropes by Tatraropes

Key benefits

  • High strength, both wet and dry
  • Great abrasion and UV resistance
  • Easy to splice and repair
  • Low bending ratio
  • Lower elongation
  • Available in very long lengt
  • Low coefficient of friction
  • High melting point (260°C)
Official Tatraropes works certificate representing internal quality inspection and load testing for synthetic ropes

Product features

  • Construction 12-strand plaited

  • Fiber Polyethylene Terephthalate - Super HT Polyester Super High Tenacity and high adhesive

  • Specific gravity 1,37 (sinking)

  • UV resistance Excelent

  • Abbrasion resistance Excelent

  • Acid resistance Excelent

  • Alkali resistance Excelent

  • Water resistance Excellent (<0,5% absorption)

  • Heat resistance Excellent (260°C melting)

  • Elongation Moderate (10% at break)

  • Cold & frost resistance Very Good +

DOWNLOAD
materials

Diameter Mass MBL spliced MBL unspliced
(mm) (inch) (kg/m) (lbs/100 ft) (t) (kN) (lbs) (t) (kN) (lbs)
10 13/32“ 0,075 5,04 4,0 39 8,767 4,4 43 9,667
12 1/2“ 0,109 7,32 5,6 55 12,364 6,3 62 13,938
14 9/16“ 0,148 9,95 7,7 75 16,860 8,5 83 18,659
16 5/8“ 0,194 13,04 9,8 96 21,580 10,9 107 24,054
18 3/4“ 0,245 16,46 12,3 121 27,201 13,7 134 30,124
20 13/16“ 0,303 20,36 15,1 148 33,271 16,7 164 36,869
22 7/8“ 0,367 24,66 18,2 178 40,016 20,1 197 44,287
24 1 0,437 29,37 21,4 210 47,142 23,8 233 52,380
26 1_1/16“ 0,513 34,47 25,0 245 55,033 27,7 272 61,148
28 1_1/8“ 0,595 39,98 28,8 282 63,531 32,0 314 70,590
30 1_1/4“ 0,683 45,90 32,9 322 72,433 36,5 358 80,481
32 1_5/16“ 0,777 52,21 37,2 365 81,943 41,3 405 91,047
34 1_3/8“ 0,877 58,93 41,8 410 92,059 46,4 455 102,288
36 1_1/2“ 0,983 66,05 46,6 457 102,782 51,8 508 114,203
38 1_9/16“ 1,095 73,58 51,7 507 114,113 57,5 564 126,792
40 1_5/8“ 1,214 81,58 57,1 560 125,848 63,4 622 139,831
44 1_3/4“ 1,468 98,65 68,6 672 151,139 76,2 747 167,932
46 1_7/8“ 1,605 107,85 74,6 732 164,695 83,0 814 182,994
48 2 1,821 122,37 81,0 795 178,655 90,0 883 198,506
50 2_1/16“ 1,896 127,41 87,6 859 193,223 97,4 955 214,692
52 2_1/8“ 2,051 137,82 94,5 927 208,397 105,0 1 030 231,553
56 2_1/4“ 2,378 159,79 108,9 1 068 240,163 121,0 1 187 266,848
58 2_3/8“ 2,551 171,42 116,6 1 143 256,956 129,5 1 270 285,507
60 2_1/2“ 2,730 183,45 124,4 1 220 274,154 138,2 1 355 304,615
64 2_5/8“ 3,106 208,71 140,8 1 381 310,370 156,4 1 534 344,856
68 2_3/4“ 3,506 235,59 158,2 1 551 348,813 175,8 1 724 387,570
72 3 3,931 264,15 176,5 1 731 389,278 196,2 1 924 432,531
76 3_1/8“ 4,380 294,32 195,8 1 921 431,767 217,6 2 134 479,741
80 3_1/4“ 4,853 326,11 216,2 2 120 476,481 240,1 2 355 529,424
84 3_1/2“ 5,350 359,50 237,4 2 328 523,421 263,8 2 587 581,579
88 3_5/8“ 5,872 394,58 259,6 2 546 572,385 288,5 2 829 635,983
92 3_3/4“ 6,418 431,27 282,8 2 773 623,371 314,2 3 081 692,635
96 4 6,988 469,57 306,8 3 009 676,381 340,9 3 343 751,534
100 4_1/16“ 7,582 509,49 331,8 3 254 731,616 368,7 3 616 812,907
102 4_1/8“ 7,888 530,05 344,8 3 381 759,942 383,0 3 756 844,380
106 4_3/8“ 8,519 572,45 371,2 3 640 818,213 412,4 4 044 909,125
110 4_1/2“ 9,174 616,46 398,5 3 908 878,499 442,8 4 342 976,110
112 4_5/8“ 9,510 639,04 412,5 4 046 909,455 458,3 4 495 1.010.505
