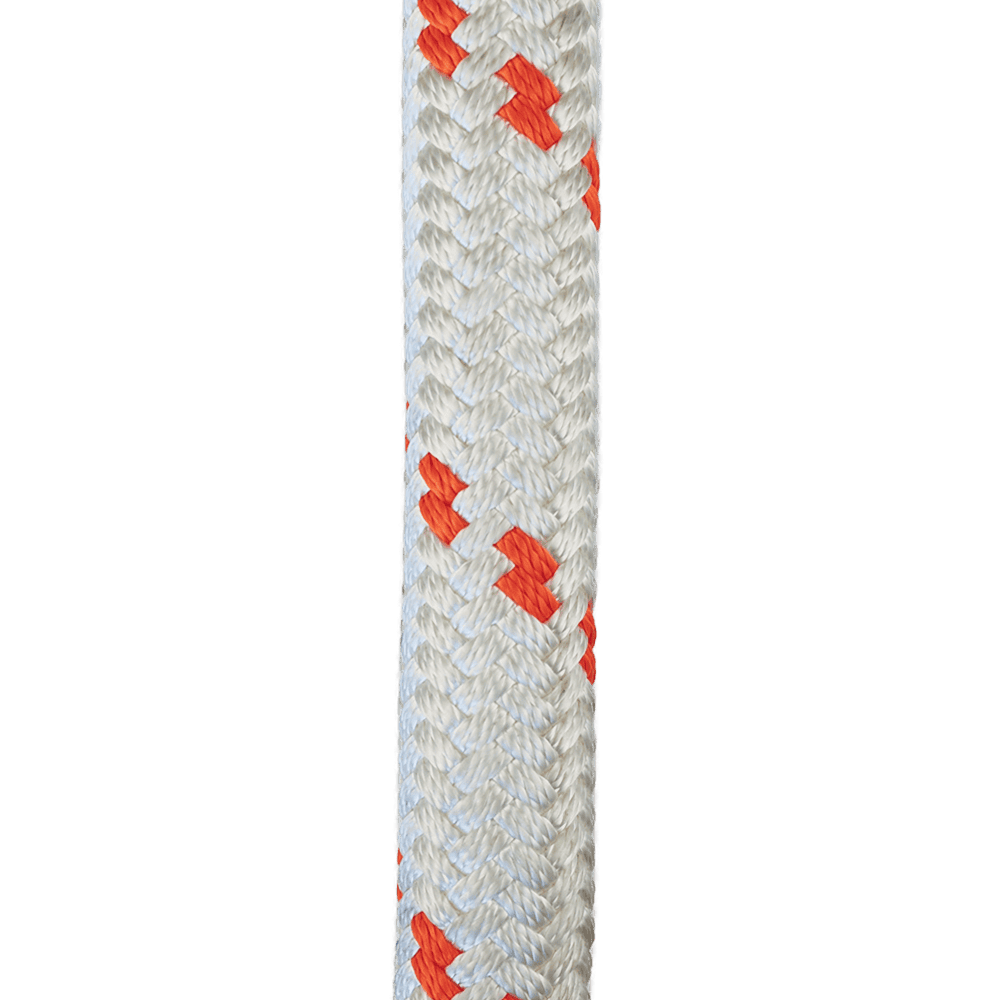

TERRAX HD

2026 product lineup Double braided 12-strand Polyester rope

The TERRAX HD represents the pinnacle of polyester rope innovation. Its precision-engineered double-braided, 12-strand construction delivers over two times the strength of conventional polyester ropes - achieving a remarkable breaking strength that surpasses the ISO standard by 150%. Where ordinary ropes reach their limits, the TERRAX HD is just getting started.


Featuring a protective outer cover and an optional integrated inner sand filter, the rope delivers enhanced UV resistance and superior abrasion protection from both internal and external forces.


Download Datasheet

customize color

Main color

Accent color

Double braided 12-strand polyester rope TERRAX HD for industrial lifting, towing, and mooring applications by Tatraropes

Key benefits

  • High strength, both wet and dry
  • Increased abrasion resistance
  • Easy to handle
  • Well balanced; 6 left and 6 right strands
  • Low bending ratio
  • High melting point (260°C)
Official Tatraropes works certificate representing internal quality inspection and load testing for synthetic ropes

Product features

  • Construction 12-strand plaited with 24/32-braided cover

  • Fiber Polyethylene Terephthalate - Super HT Polyester Super High Tenacity and high adhesive

  • Specific gravity 1,37 (sinking)

  • UV resistance Excelent

  • Abrasion resistance Excelent

  • Acid resistance Good

  • Alkali resistance Good

  • Heat resistance Excellent (260°C melting)

  • Elongation Moderate (10% at break)

  • Cold & frost resistance Very Good +

DOWNLOAD
materials

Diameter Mass MBL spliced MBL unspliced
(mm) (inch) (kg/m) (lbs/100 ft) (t) (kN) (lbs) (t) (kN) (lbs)
4 1/8" 0,046 2,953 0,70 6,7 1,506 0,8 7 1,574
6 1/4“ 0.,066 4,237 1,50 14,6 3,282 1,6 16 3,597
8 5/16“ 0,093 5,970 5,50 25,0 5,620 2,8 28 9,295
10 13/32“ 0,125 8,400 4,00 39,0 8,767 4,4 43 9,667
12 1/2“ 0,164 11,020 5,61 55,0 12,364 6,3 62 13,938
14 9/16“ 0,208 13,977 7,70 75,0 16,860 8,5 83 18,659
16 5/8“ 0,259 17,404 9,8 96,0 21,580 10,3 107 24,054
20 13/16“ 0,378 25,400 15,1 148,0 33,271 16,7 164 36,869
22 7/8“ 0,447 30,037 2,18 178,0 40,016 20,1 197 44,287
24 1 0,521 35,010 21,4 210,0 47,142 23,8 233 52,380
26 1_1/16“ 0,602 40,453 25,00 245,0 55,033 27,7 272 61,148
30 1_1/4“ 0,782 52,548 32,90 322,0 72,433 36,5 358 80,481
32 1_5/16“ 0,880 59,133 37,20 365,0 81,943 41,3 405 91,047
34 1_3/8“ 0,985 66,189 41,80 410,0 92,059 46,4 455 102,288
36 1_1/2“ 1,096 73,648 46,60 457,0 102,782 51,8 508 114,203
40 1_5/8“ 1,336 89,775 57,10 560,0 125,848 63,4 622 139,831
44 1_3/4“ 1,599 107,448 68,60 672,0 151,139 76,2 747 167,932
46 1_7/8“ 1,740 116,923 74,60 732,0 164,695 83,0 814 182,994
50 2_1/16“ 2,040 137,082 87,60 859,0 193,223 97,4 955 214,692
52 2_1/8“ 2,199 147,766 94,50 927,0 208,397 105,0 1 030 231,553
56 2_1/4“ 2,535 170,344 108,90 1 068,0 240,163 121,0 1 187 266,848
58 2_3/8“ 2,712 182,238 116,60 1 143,0 256,956 129,5 1 270 285,507
60 2_1/2“ 2,895 194,535 124,40 1 220,0 274,154 138,2 1 355 304,615
64 2_5/8“ 3,279 220,339 140,80 1 381,0 310,370 156,4 1 534 344,856
68 2_3/4“ 3,687 247,755 158,20 1 551,0 348,813 175,8 1 724 387,570
72 3 4,119 276,784 176,50 1 731,0 389,278 196,2 1 924 432,531
76 3_1/8“ 4,576 307,493 195,80 1 921,0 431,767 217,6 2 134 479,741
80 3_1/4“ 5,056 339,748 216,20 2 120,0 476,481 240,1 2 355 529,424
84 3_1/2“ 5,560 373,615 237,40 2 328,0 523,421 263,8 2 587 581,579
88 3_5/8“ 6,089 409,162 259,60 2 546,0 572,385 288,5 2 829 635,983
92 3_3/4“ 6,642 446,322 282,80 2 773,0 623,371 314,2 3 081 692,635
96 4 7,218 485,027 306,80 3 009,0 676,381 340,9 3 343 751,534
98 3_14/16“ 4,516 463,373 319,20 3 130,0 703,652 354,6 3 478 878,553
100 4_3/8“ 7,819 501,956 331,80 3 254,0 731,528 368,7 3 616 812,909
102 4_1/8“ 8,129 521,857 344,70 3 380,0 759,854 382,9 3 756 844,382
104 4_1/2“ 8,444 542,079 357,80 3 509,0 788,854 397,5 3 899 876,530
106 4_5/8“ 8,765 562,686 371,20 3 640,0 818,304 412,4 4 044 909,127
108 4_1/2“ 9,093 583,742 384,70 3 773,0 848,204 427,5 4 192 942,399
110 4_9/16“ 9,426 605,120 398,50 3 773,0 878,553 442,8 4 342 976,120
112 4_5/8“ 9,766 626,947 412,60 4 046,0 909,577 458,4 4 495 1.010.516
